RMS 66 Mustang Build

[ccobra]

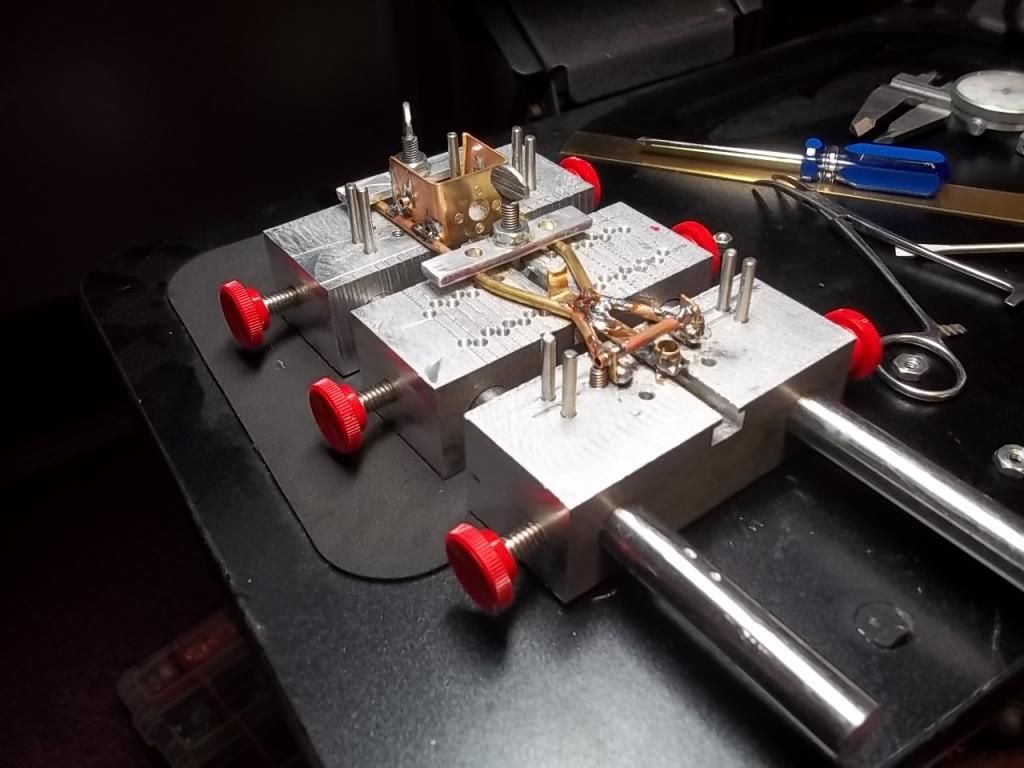

At first I thought I make a brass chassis for this little beast but after completing it I noticed it was way out of alignment on the motor mount. So I decided to get out the CAD program and printer and start a plastic one instead. That turned out to be a little better. After some modifications to a plastic card I was able to put a PM driver on it and install in the body along with the chassis. I also beefed up the plastic chassis in the flag area so it wouldn't be awaiting work like my One Ugly Falcon is.
Anyway I am happy with the results for with the parma deathstar motor it only tips the scales at a hefty 118.8g. I used Parma gears, slotit wheels and axles and PG tires. First run around the track turned a 8.04 which I don't consider to bad.
Now to start on another project car from RMS.

[bill from nh]

Don't give up on the brass chassis. You say your misalignment was in the motor mount. Did you happen to drill your axle holes before you bent the mount into a "U" shape? If so, next time try placing them after the mount is bent. You should be able to more accurately locate them then.

[ccobra]

I didn't do it my normal way, I took a short cut. What I normally do is print out the motor mount full scale, cut it out and glue it to the brass. Then I punch out the holes and bend it. Once bent, I then scrub off the paper and solder it on. I'm thinking of getting one of those miniature press breaks to do the bends instead of the pliers method.

[dreinecke]

Looks like it will be quick! Nice build!

[ccobra]

The plastic chassis. I tried to simulate the brass version as best as I could and left out the front suspension this time which I have add to previous chassis. Notice the brass stiffener for the flag. I thinking of filling the brass tube with JB Weld and then drill it out for the flag to get rid of some of the slop
There is a little flex in the chassis so I just mounted on the sides to take advantage of the flex.

[TuscoTodd]

Pretty slick!
I imagine with that 16D in there, she has noooooooooo problems drifting out of the corners if you are so inclined! :D

[slothead]

I really like the chassis you made. This is a 3D chassis that you designed and printed? If so, this is dangerous 'cause I have a CS degree and could really get into this, but then I'd end up ignoring my cars and track.

When I'd build a car using a resin or model kit body, I'd buy an RTR car to use the chassis. But, the newer RTR cars are so detailed I can't match them appearance-wise, so now I just buy the liveries I want and race them as is. If I could get a plastic chassis just for resin & model kit builds it would be great. (I've scratch built brass chassis too, but they outperform RTR cars and defeat the purpose of having a series.)

If you have a chassis available that's sized for the '66 Mustang coupe resin body, let me know.

Slothead

[ccobra]

When I design the chassis for the car that I plan on building, I first research the car and set the wheelbase and width to scale. Nice thing about the RMS bodies is they are to scale so I only need to fine tune the chassis mount width.
Right now I only have the 66 Mustang chassis for the parma motor but am working on the Javelin, Chevy II and Maverick with the H&R motor, a motor labeled Evil 9, and another JR motor.
